マキノ U53i 高精度 ワイヤ放電加工機 MAKINO U53i Wire EDM

SOLD OUT

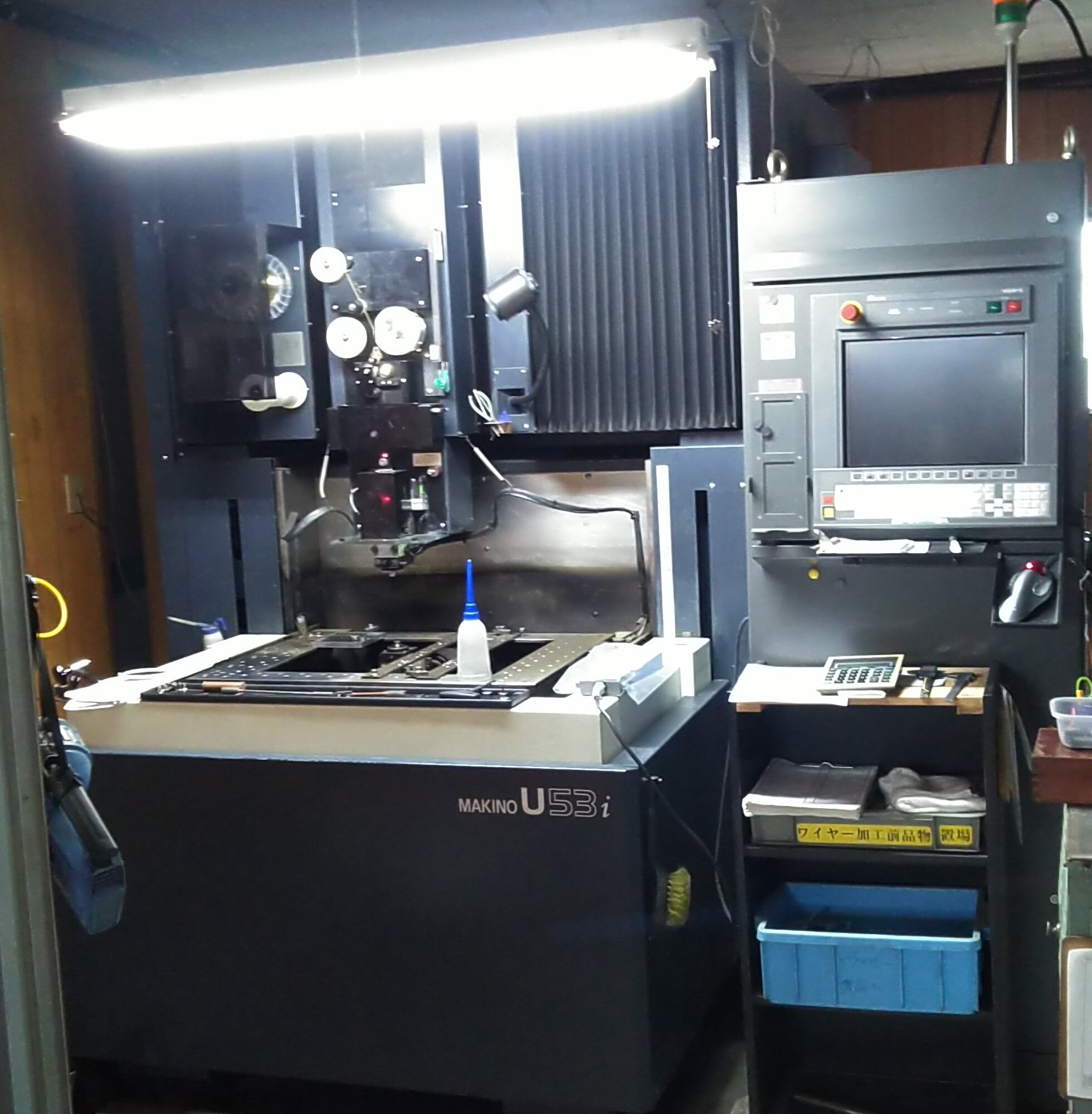

マキノ U53i 高精度 ワイヤ放電加工機
MAKINO U53i Wire EDM

Price: ASK
Model year : 2019?
Condition: Used, Good working
Location: Kanto region, Japan


U53j Wire EDM
https://www.makino.com/machine-technology/machines/wire-edm/u53j

The same higher-level precision and surface finish capability as the U32j, but with larger travels

The U53j Wire EDM(electrical discharge machining) offers the same higher level precision and surface finish capability as the U32j, but with larger travels. The stationary work table construction of the U53j improves accuracy and repeatability by eliminating the di-electric weight shifting that occurs with moving table designs. The machine footprint is reduced by utilizing a space-savings design that integrates the di-electrode reservoir into the base casting of the machine, which improves thermal stability. The entire machine structure is maintained at a constant temperature, and chilled air is circulated throughout the internal machine covers to mitigate any thermal growth or distortion.

The U53j provides the operator with a commanding view of the Hyper i control with a large 24” class HD touch-screen display that utilizes a straightforward 3-Step operation process of Program/Setup/Run. The Hyper i control is extremely efficient and user-friendly, and provides an intuitive and familiar touch Pinch/Swipe/Drag operational interface that is similar to smartphones and tablets, and is used on all Makino Wire and RAM EDM machines. The standard full-function advanced Handbox, digital onboard electronic manuals, instructional training videos, and advanced E-Tech Doctor help functions empower the operator with everything they need to be productive right at their fingertips.
